Automatic Stator Wave Winding Machine Car Automobile Generator Alternator

Name: Automatic Stator Wave Winding Machine Car Automobile Generator Alternator
Brand: WIND AUTOMATION
Price: 1 USD

Quality Automatic Stator Wave Winding Machine Car Automobile Generator Alternator for sale

Brand Name : WIND AUTOMATION

Model Number : WIND-AGWI

Place of Origin : China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T

Delivery Time : 35 working days

Packaging Details : Wooden Pallet

Condition : New

Test item : Stator

Working station : Double Station

Automation type : Fully automatic

Testing item content display : Test result Intuitive display on screen one by one

After Sales Service : Engineer available for oversea service

Contact Now

Automatic Car Automobile Generator Alternator Stator Wave Winding And Wedge Insertion WIND-AGWI

(1) Application

Suitable for auto alternator stator wave shape winding automatic wire winding, automatic wire embedding

and putting into winding transfer former automatically.

(2) Quick details of machine opearation

Servo motor control wire arraying and winding, pneumatically shaped to plum blossom, double work

stations automatic position changing, servo automatic wire embedding, automatically put into slot cover,

one work station for wave shape winding and push into wire embedding mould, another station for wire

embedding and put into slot cover, put paper inserted stator on the station manually, repeating operation,

PLC control, colorful touching screen, with press work/single step/automatic three kinds of work method,

high automation and efficiency.

(3) Technical Data

Power Supply Voltage: 3

-380V/220V

10% 50Hz

Air source Pressure: 0.5~0.7Mpa

Machine Power: about 8 kW

Wire Winding Speed: 10-120r/min

Stator Slot Number 36/48

Wire Diameter:

0.8-

1.6mm

Merging Winding Wire Number: 1-2

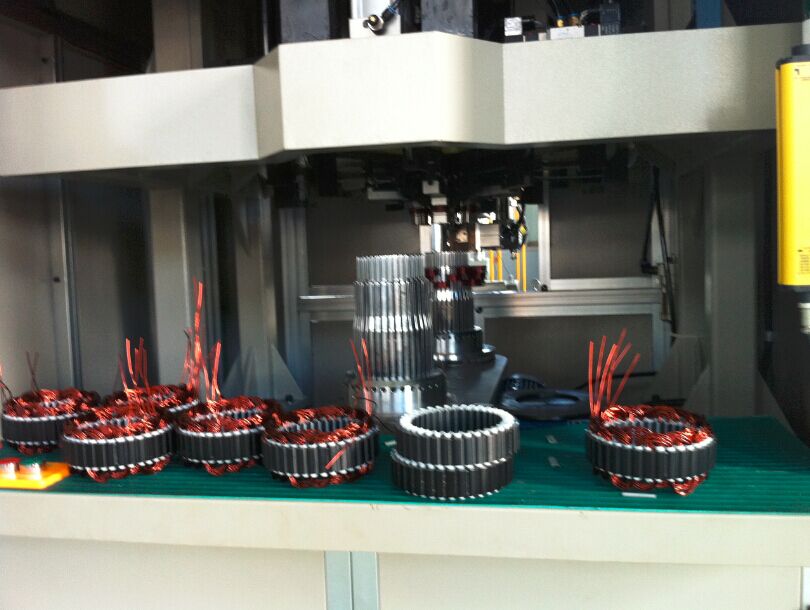

Please click below photo to view video
